ESI Technology Ltd. - PRODUCT NEWS







          GERMAN RELIABILITY,
          BRITISH ACCURACY, ITALIAN CREATIVITY


MA.IN.A. OFFERS
          A LARGE PORTFOLIO OF PRESSURE MONITORING SOLUTIONS, FROM SUCO
          MECHANICAL PRESSURE SWITCHES MAINLY DESIGNED FOR GENERAL-PURPOSE
          APPLICATIONS AND MOBILE HYDRAULIC SYSTEMS, TO ESI TRANSMITTERS
          AND TRANSDUCERS FOR APPLICATIONS IN SEVERAL INDUSTRIES, FROM
          AEROSPACE TO MEDICAL.


The pressure
          monitoring portfolio from ma.in.a. s.r.l., based in Peschiera
          Borromeo near Milan, has been traditionally based on the product
          range of the German vendor Suco. The mechanical pressure switches
          from the Stuttgart-based company have always been a reference
          in terms of long-term resistance to overpressure, stable calibration
          even under strong vibration, consistent specii cations and tolerances
          across different production batches. Field applications in different
          industries have shown that the Suco pressure switches are a technical
          benchmark, by virtue of their reliability and performance in
          all conditions, even critical. The acquisition of the British
          company ESI has given a boost to the Suco organization in the
          electronic pressure monitoring domain, both for electronic pressure
          switches and for pressure transmitters and transducers, for both
          Suco and ESI brands.


A COMPLETE
          RANGE

          Suco products are mainly designed for general-purpose applications
          and mobile hydraulic equipment, standing out for technological
          solutions that offer superior long-term stability and "4X"
          overpressure resistance instead of conventional "2X".
          This results into higher resistance in the short term, as well
          as reliability and measurement stability in the long run.

          ESI transducers and transmitters are dedicated to applications
          in the process industry, even heavy-duty or with aggressive i
          uids, in the control of water reservoirs, in aerospace, medical,
          Oil&Gas and defense. ESI also offers ATEX and IECEx certii
          ed transducers, including differential pressure measurement instruments
          and transducers for pressure up to 4,000 bar. The range also
          includes transducers for sub sea valves, integrated systems with
          transducer-transmitter/radio receiver also for long distances,
          noble materials like titanium, USB output and dedicated software
          (PC-based measurements from up to 16 transducers simultaneously,
          generation of custom test reports, pressure and temperature logs
          with Excel export function). The wide range of solutions offered
          by ma.in.a. And their partners allows to overcome some traditional
          limits of conventional instrumentation, already in the early
          design stages. One-to-one relationship management, which has
          ensured the success of existing collaborations, is another reason
          to consider the opportunity of partnering with ma.in.a.


TRANSDUCERS
          WITH SOS TECHNOLOGY

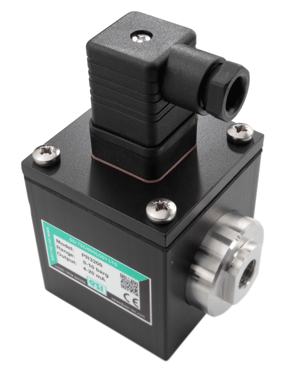

          ESI has applied SOS (Silicon On Sapphire) technology to differential
          pressure transducers. The PR3200 series is based on two independent
          sensors on either side, specifically "tuned" and calibrated.
          In all SOS transducers, wetted parts are made of titanium, offering
          unbeatable performance with high over pressures and excellent
          chemical compatibility. With their affordable price, they are
          extensively used also in less critical, costsensitive situations.
          Applications include combustion room and cleanroom control, fillter
          monitoring in high-pressure hydraulic systems and all installations
          where high levels of accuracy and reliability are required.


INTEGRATED
          TEMPERATURE SENSOR

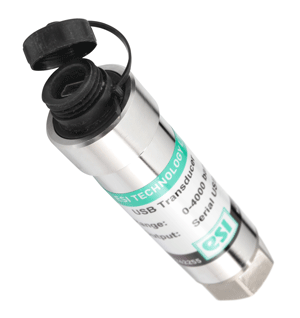

          The ESI portfolio of transmitters and transducers includes pressure
          transmitters equipped with integrated temperature sensor with
          USB output and dedicated software, up to 4,500 bar. The instruments
          can be calibrated via software and offers excellent accuracy
          and reliability, also thanks to SOS technology. The stainless
          steel body and the titanium process connector are compatible
          with almost all fluid and gases, preventing possible corrosion
          and leaks. Easy and convenient use are guaranteed by autodetection
          and automatic system coni guration. The software allows to manage
          up to sixteen transmitter

          simultaneously, display pressure and temperature in graphical
          and numerical mode, set two alarm thresholds, quickly generate
          customizable calibration certii cates for other instruments,
          generate custom certii ed tests with multipoint and pressure/temperature
          chart, and export data in MS Excel format.


About ESI Technology

          ESI Technology manufactures a wide range of pressure sensors,
          strain gauges and telemetry systems from its purpose built factory
          in Wrexham, north Wales.

          ________________________________________________________


For more information,
          contact:



          ESI
          Technology Ltd.

          Sensor House, Wrexham Technology Park, Wrexham, LL13 7YP, UK

          Tel: +44 1978 262255

          Fax: +44 1978 262233

          Email: info@esi-tec.com

          Website: www.esi-tec.com


January 2015
